Creating an API with AWS AppSync and DynamoDB: A Step-by-Step Guide
In today's fast-paced technology landscape, building a powerful API that can handle the demands of modern applications has become a necessity.
AWS AppSync and DynamoDB are two powerful services from Amazon Web Services that make building APIs a breeze.
With AppSync, you can develop GraphQL APIs with ease, and DynamoDB provides fast and predictable performance with seamless scalability.
In this step-by-step guide, we'll walk you through the process of creating a robust API using AWS AppSync and DynamoDB. We'll cover everything from setting up your API with AppSync to defining your schema, connecting to a DynamoDB table, adding resolvers, and testing your API. By the end of this guide, you'll have the knowledge and skills necessary to build powerful GraphQL APIs that can handle the demands of modern applications.
So, let's dive in and get started!
Step 1: Set up the DynamoDB table
We're going to create a simple ToDo application.
Each ToDo will be recorded in this DynamoDB table:
const todoTable = new dynamodb.Table(this, "ToDoTable", {
billingMode: dynamodb.BillingMode.PAY_PER_REQUEST,
partitionKey: { name: "id", type: dynamodb.AttributeType.STRING },
removalPolicy: cdk.RemovalPolicy.DESTROY,
});
Step 2: Defined the GraphQL schema
Once we have your DynamoDB table set up, we'll need to define the API schema.
The schema defines the types of data that the API will return and the operations that it supports.
We can then define your schema using the GraphQL schema language.
Let's define the schema in the schema.graphql file:
schema {
query: Query
mutation: Mutation
}
type Query {
todos(limit: Int, nextToken: String): ToDoPage!
}
type Mutation {
addTodo(newToDo: ToDoInput!): ToDo!
completeTodo(id: String!): ToDo!
deleteTodo(id: String!): Boolean!
}
type ToDo {
id: ID!
name: String!
description: String!
completed: Boolean!
}
type ToDoPage {
items: [ToDo!]
nextToken: String
}
input ToDoInput {
name: String!
description: String!
}
Step 3: Create the AWS AppSync API
With the schema defined, we can now create the AppSync API:
const graphqlApi = new appsync.GraphqlApi(this, "ToDoAPI", {
name: "ToDo API",
schema: appsync.SchemaFile.fromAsset(
path.join(__dirname, "schema.graphql")
),
authorizationConfig: {
defaultAuthorization: {
authorizationType: appsync.AuthorizationType.API_KEY,
apiKeyConfig: {
description: "public key for getting data",
expires: cdk.Expiration.after(cdk.Duration.days(30)),
name: "API Token",
},
},
}
});
Step 4: Add resolvers
Resolvers are functions that map GraphQL operations to the underlying data sources.
In other words, they tell your API how to retrieve and manipulate data in your DynamoDB table.
In AWS AppSync, you can define your resolver using the VTL (Velocity Template Language) syntax.
Connect the API to the DynamoDB table with a data source
First we need to let the API know it needs to connect the DnamoDB table with a data source:
const todoTableDataSource = graphqlApi.addDynamoDbDataSource(
"ToDoTableDataSource",
todoTable
);
Query todos
While querying todos could return the whole list of todos, it could quickly become inefficient if the list is large.
Instead our API allows us to return a paged list of todos:
type Query {
todos(limit: Int, nextToken: String): ToDoPage!
}
type ToDoPage {
items: [ToDo!]
nextToken: String
}
We just have to provide a limit argument as the page size, and the nextToken will be returned, so we can query for the next page.
Here is how it is implemented:
todoTableDataSource.createResolver("QueryToDosResolver", {
typeName: "Query",
fieldName: "todos",
requestMappingTemplate: appsync.MappingTemplate.fromString(`
#set( $limit = $util.defaultIfNull($context.args.limit, 100) )
#set( $ListRequest = {
"version": "2018-05-29",
"limit": $limit
} )
#if( $context.args.nextToken )
#set( $ListRequest.nextToken = $context.args.nextToken )
#end
$util.qr($ListRequest.put("operation", "Scan"))
$util.toJson($ListRequest)
`),
responseMappingTemplate: appsync.MappingTemplate.fromString(`
#if($ctx.error)
$util.error($ctx.error.message, $ctx.error.type)
#else
$util.toJson($ctx.result)
#end
`),
});
Notice that we assume a default limit of 100 if none is provided.
Mutation addTodo
The addTodo mutation leverages the dynamoDbPutItem method to insert an item in our DynamoDB table.
It's worth mentionning that we let AppSync generate the ToDo ID by calling the auto() function on our partition key.
todoTableDataSource.createResolver("MutationAddToDoResolver", {
typeName: "Mutation",
fieldName: "addTodo",
requestMappingTemplate: appsync.MappingTemplate.dynamoDbPutItem(
appsync.PrimaryKey.partition("id").auto(),
appsync.Values.projecting("newToDo").attribute("completed").is("false")
),
responseMappingTemplate: appsync.MappingTemplate.dynamoDbResultItem(),
});
Mutation completeTodo
todoTableDataSource.createResolver("MutationCompleteToDoResolver", {
typeName: "Mutation",
fieldName: "completeTodo",
requestMappingTemplate: appsync.MappingTemplate.fromString(`
{
"version": "2018-05-29",
"operation" : "UpdateItem",
"key" : {
"id": $util.dynamodb.toDynamoDBJson($context.arguments.id),
},
"update" : {
"expression": "set #completed = :completed",
"expressionNames": {
"#completed": "completed",
},
"expressionValues": {
":completed": $util.dynamodb.toDynamoDBJson(true),
}
},
"condition": {
"expression": "attribute_exists(id)"
}
}`),
responseMappingTemplate: appsync.MappingTemplate.dynamoDbResultItem(),
});
Mutation deleteTodo
todoTableDataSource.createResolver("MutationDeleteToDoResolver", {
typeName: "Mutation",
fieldName: "deleteTodo",
requestMappingTemplate: appsync.MappingTemplate.dynamoDbDeleteItem(
"id",
"id"
),
responseMappingTemplate: appsync.MappingTemplate.fromString(`
#if($ctx.error)
$util.error($ctx.error.message, $ctx.error.type)
#else
true
#end
`),
});
Testing the API
To test the AppSync API, log in the AWS console and go to the AppSync service.
In the AppSync console, you can select your API and select Queries from the menu.
You'll be presented with a GraphQL editor.
Let's try to use our API.
Testing the addTodo mutation

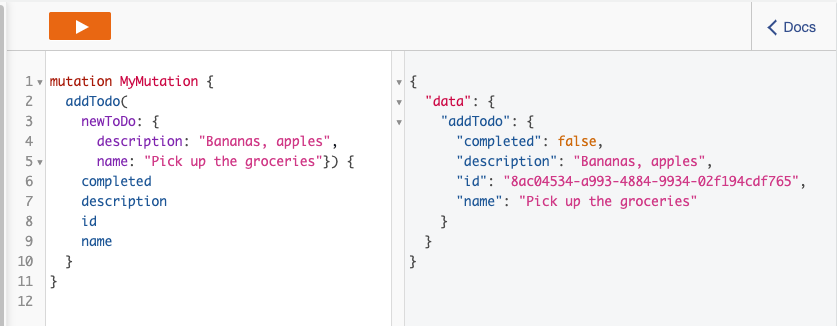

First create a Todo Item with the addTodo mutation:
In my case, this mutation created a ToDo item with a particular ID. We'll use this ID to further explore the API. Notice how the ToDo is not completed by default.
Testing the completeTodo mutation

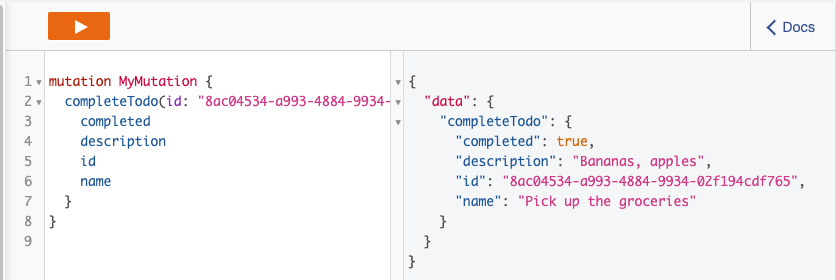

Next, let's complete the ToDo with the completeTodo mutation:
The returned ToDo now has the attribute completed set to true.
Testing the todos query

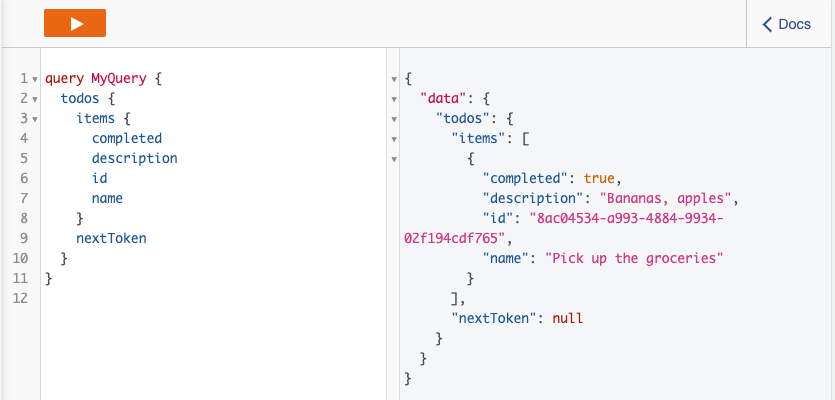

We've added and completed a ToDo, now let's try to fetch the list of ToDos with the todos query:
This query returns the list ToDos.
Testing the deleteTodo mutation

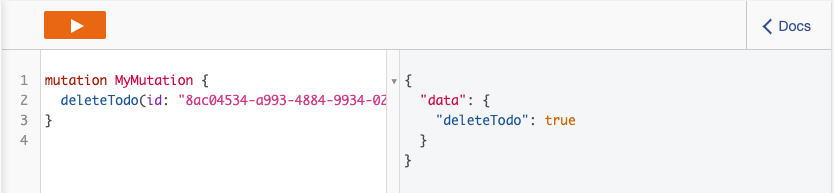

Finally, let's clean up our test by deleting the ToDo we created with the deleteToDo mutation:
Conclusion
Creating a fast and scalable API is critical for any modern application, and AWS AppSync and DynamoDB make this process simple and efficient.
By following the step-by-step guide outlined in this article, you can quickly set up a powerful API that can handle the demands of your application.
With AppSync handling the heavy lifting of securely connecting to data sources and DynamoDB providing fast and predictable performance with seamless scalability, you can easily build robust GraphQL APIs that can handle the demands of modern applications.
So, whether you're building a mobile app, a web app, or a desktop application, AWS AppSync and DynamoDB are powerful tools that can help you create an API that will meet your needs.
Source code available on github.
